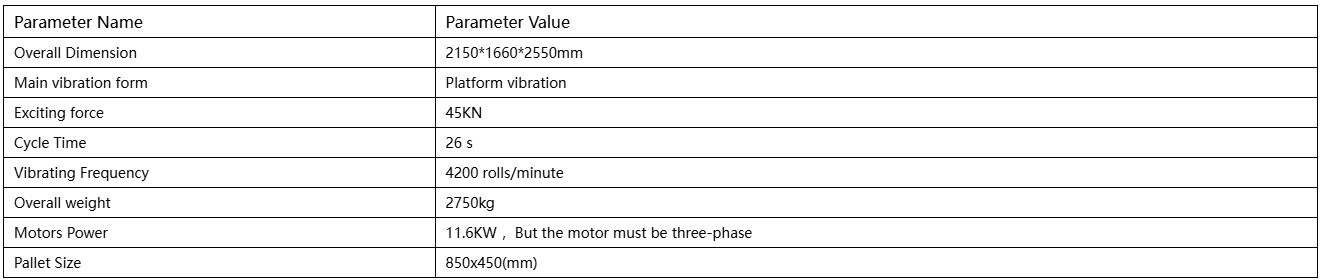

QTJ4-26 learns from mature German European flat vibration craft, equipped with independent bottom vibration box, 45KN strong exciting force and 4200 high vibration frequency per minute. The vibration evenly covers the whole 850×450mm pallet, fully compacting raw materials without honeycomb holes inside blocks. Compared with ordinary vibration structures, the separated bottom vibration greatly reduces motor overload burnout rate, lowering daily maintenance cost for African users under long-time continuous operation.
Matching German tech forming logic, all core actions including upper mould lifting and raw material feeding are centrally controlled by control box with electric mould pushing structure. The operation panel is simple and intuitive; African workers can master operation after short training without complex professional skills. Stable vibration and pressing parameters keep consistent brick size, reducing waste rate in mass production for local small and medium brick factories.
With optimized German-style vibration matching structure, the total power of the whole machine is only 11.6KW three-phase motor, which saves electricity obviously. It adapts to unstable power grid environment widely existing in African countries, avoiding shutdown and equipment damage caused by voltage fluctuation, guaranteeing stable daily production.

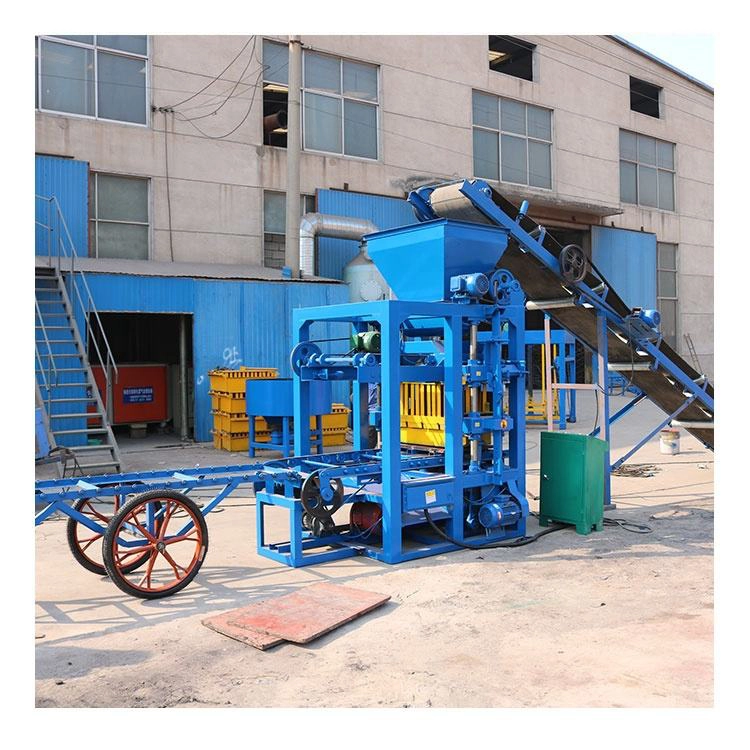

The whole production line includes QTJ4-26 main machine, JQ350 thickened mixer, 6m four-layer conveyor, frequency conversion block stacker and hand trolleys. All auxiliary machines match the German tech host perfectly, forming an integrated semi-automatic production flow. Compact layout can be fully packed into one 20ft container, cutting ocean freight cost for African buyers and simplifying customs clearance.

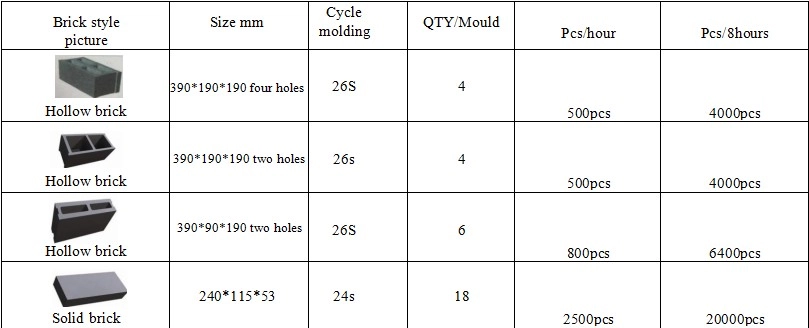

Single molding cycle only takes 26 seconds. It can produce up to 18 solid bricks per mould, realizing 20,000 solid bricks per 8-hour shift. Africa’s rapid infrastructure construction creates huge demand for concrete blocks; this high-yield machine helps local manufacturers finish large orders efficiently and gain more profit.
The machine supports fly ash, slag, gangue, sand, stone and other cheap local solid wastes as raw materials, with clear material proportion reference. African factories can replace expensive cement with local waste materials, greatly cutting raw material expenditure and complying with global environmental protection standards.
Equipped with wear-resistant manganese steel mould (one free supplied), it can produce hollow blocks, solid standard bricks and slope protection bricks by changing moulds. Multiple product types satisfy house construction, road paving and slope protection projects across Africa.
The main body is thick welded with heavy steel, total weight reaches 2750kg to resist deformation under long-term high-frequency vibration. Mould adopts manganese steel with wire cutting treatment, featured outstanding wear resistance, suitable for African harsh continuous production environment without frequent replacement.
The machine enjoys one-year full warranty after on-site installation and commissioning in Africa factory. The supplier provides long-distance English technical guidance for installation, debugging and fault solving. Flexible payment terms (TT deposit or irrevocable L/C) and 25-day delivery cycle lower capital pressure of African importers.
